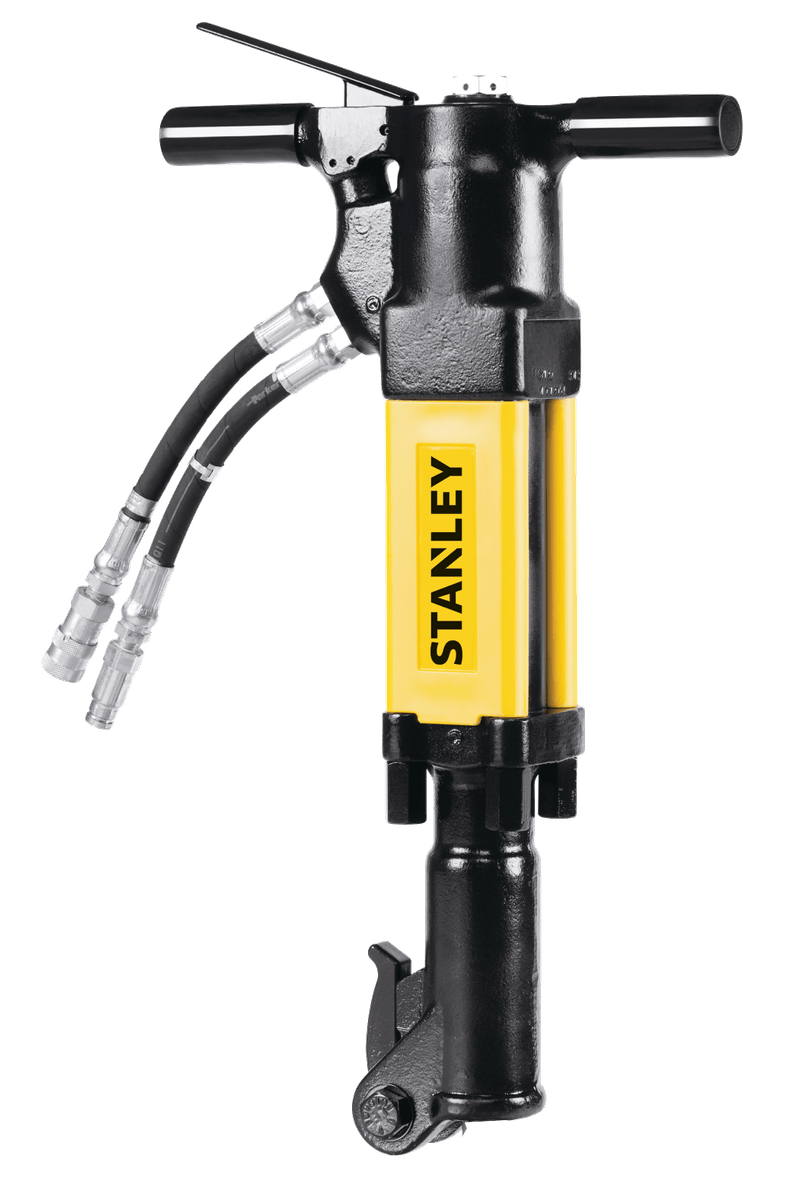

BR6717801A - Stanley Breakers

Nothing equals the impact force of hydraulic-powered breakers. With the best power-to-weight ratio, higher blow energy, and a lower noise level than pneumatic breakers, our hydraulic percussion tools are simply the best choice. Our 70-lb. class breakers, for instance, deliver roughly the same impact energy as most 90-lb. pneumatic breakers. Internal components are continually bathed in hydraulic oil, providing long-lasting performance with minimal maintenance requirements. And because the hydraulic system is totally enclosed, there’s no tool exhaust or oil atomization often found with gas-powered or pneumatic alternatives.



Compared to other options, hydraulic breakers offer:

  • Higher impact than comparably sized alternative platforms
  • No tool exhaust
  • Quieter operation than pneumatic tools allows for use in sensitive areas
  • Hydraulic oil provides continuous lubrication of internal parts for longer service life
  • Modular, re-buildable design platform improves serviceability
  • Handles system back pressures up to 250 psi / 17 bar
  • Feathering ON/OFF valve to control speed and make initial tool placement easy
  • Trouble-free diaphragm accumulator for added blow energy


Length
29.0
25.0
27.0
28.0
26.25
29.25
24.0
EstimatedDateArrival
2023-03-30
IsActive
true
Capacity
6-8 Inches breaking capacity (70lbs)
8+ Inches breaking capacity (90lbs)
2-6 Inches breaking capacity (35-55lbs)
2-6 Inches breaking capacity (55-70lbs)
Connection
3/8 in. flush face quick disconnect couplers
Miscellaneous
ANTI VIBRATION
T HANDLE
UNDERWATER
EZ RIDE FOOT
Tool Bit Size
1-1/4 X 6-1/4 IN. | 32 X 160 MM HEX
1-1/4 X 6 IN. HEX
1” HEX
7/8 X 3-1/4 IN. HEX
1 X 4-1/4 IN. HEX
1-1/8 X 6 IN. HEX
1 X 4-1/4 IN. | 25 X 108 MM HEX A
1-1/8” HEX, OPEN CENTER

Features
